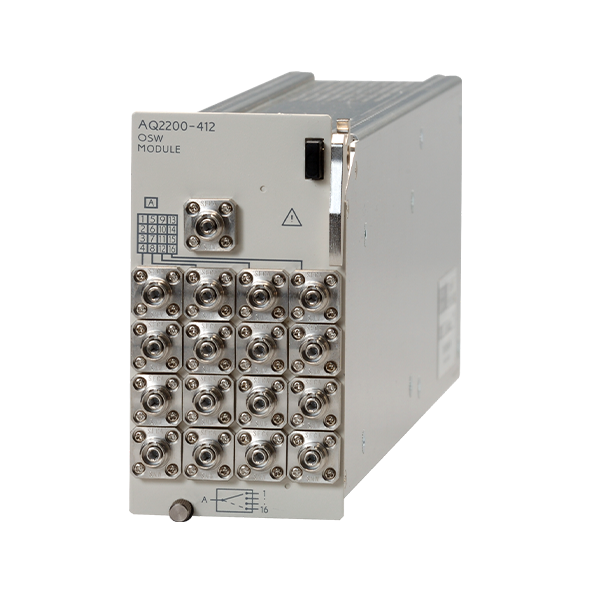

YOKOGAWA AQ2200-412 Optical Switch Module (1 x 16) – Optical Switches

Teklif İsteyinFİYAT TEKLİFİ İÇİN TIKLAYIN!
  • Compact: Optical switches of 1 x 16 port configuration in a two-slot size module
  • Compatible with SMF(10/125µm) or MMF(50/125µm)
  • Low insertion loss: 1.0 dB (typ.)
  • High switching reproducibility: within ±0.01 dB
  • Can be combined with various AQ2200 series modules or other Yokogawa’s optical communication measuring instruments to build versatile measuring systems
    JAPON MALI

FEATURES The AQ2200-412 OSW module is a space-saving 1 x 16 optical switch featuring low insertion loss and superior switching reproducibility, in a two-slot size module. This module allows to connect up to 16 DUT and improve testing efficiency in automatic test system.   Devamı

Kategoriler: Etiketler:
Açıklama

FEATURES

The AQ2200-412 OSW module is a space-saving 1 x 16 optical switch featuring low insertion loss and superior switching reproducibility, in a two-slot size module. This module allows to connect up to 16 DUT and improve testing efficiency in automatic test system.



Ürün Özellikleri

Ürün Özellikleri

Teknik Özellikler

Teknik Özellikler

Aksesuarlar

Aksesuarlar

Fiyat Teklifi
bekleyiniz
Etiketler:
