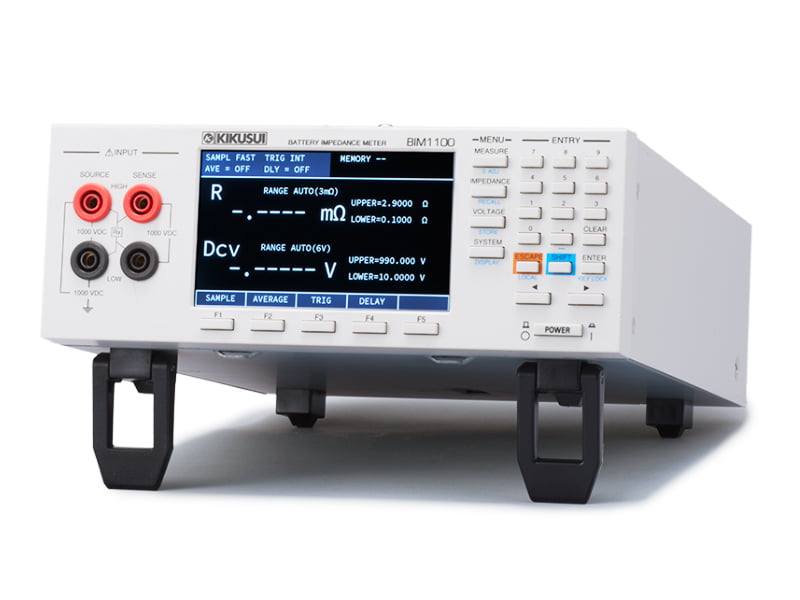

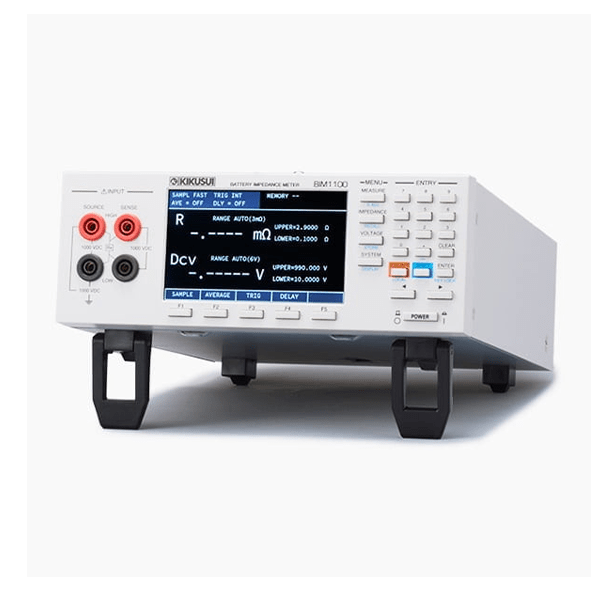

KIKUSUI BIM1030
- Maximum voltage measurement: 1000V max. (BIM1100), 300V max. (BIM1030)
- Voltage measurement accuracy: ±(0.01% of reading +3 digit)
- Resistance measurement accuracy: ±(0.5% of reading +5 digit)
- Resistance measurement ranges: 3mΩ / 30mΩ / 300mΩ / 3Ω
- High resolution: Voltage 10μV (6V range), Resistance 0.1μΩ (3mΩ range)
- Measurement frequency: 1kHz ±0.2Hz
- Sampling speed (Resistance & voltage simultaneous measure-ments): 20ms (FAST)
- Zero Adjustment Function: Effective for decreasing measure-ment error.
- Measurement logging (500 pairs) and collective transfer function
- SIGNAL I/O, RS232C and USB as standard interface
- New high visibility color display.
An ideal unit for manufacturing and inspection applications of rechargeable batteries.

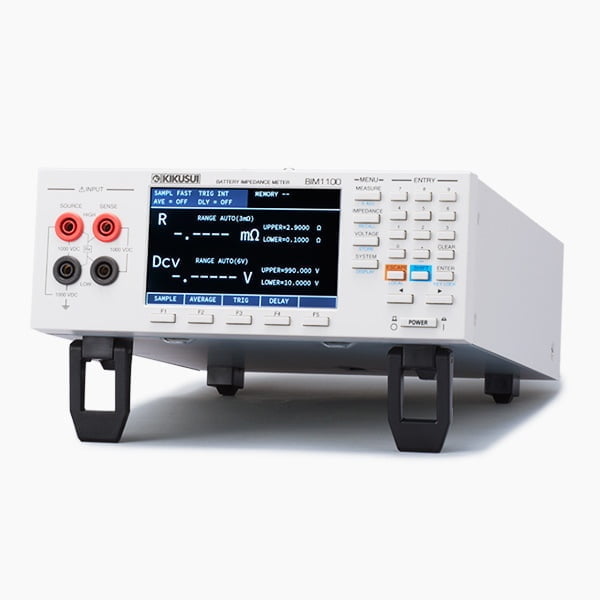

Ever-changing battery technology requires batteries powering electric vehicles to have high voltage, high power and low impedance. The Battery Impedance Meter, or BIM1000 Series, is capable of measuring up to 1000 V of test voltage for simultaneous measurements of both battery voltage and resistance at high speeds. The BIM is the ideal equipment for power battery development research and production tests.

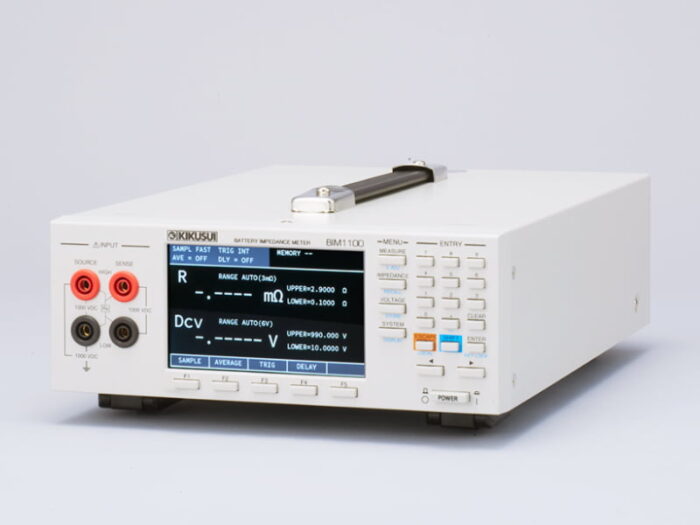

Color liquid crystal display (LCD) / Comparator Functions
High visibility color monitor. The resistance, voltage, upper and lower limits values are displayed at a glance.
The comparator functions allows setting HIGH/LOW, and resistance and voltage can be simultaneously judged by independent comparators. Judgment results are provided on the display. External I/O is available for signal output.
