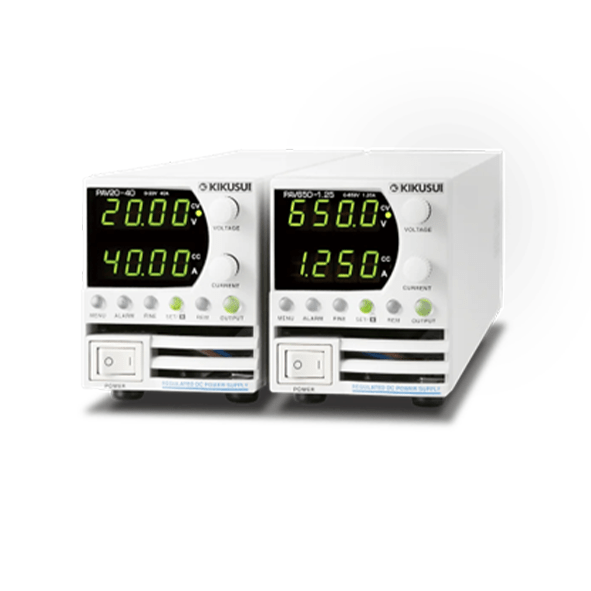

KIKUSUI PAV Series DC Power Supply (CV/CC)
- 2U bench-top type
- Palm-sized, portable power supply
- Output power : 200W / 400W / 600W / 800W 4models
- Output voltage : 10V to 650V 8 models
- 64 models total (LAN model included)
Feature
Remote sensing
These features compensate voltage drops in wires from the output terminals to the load terminals of the PAV series.
Output voltage/current remote monitoring and CV/CC signals
Voltages from 0 V to 5 V or 0 V to 10 V are output proportionally to the output voltage/current from the PAV series. The operation state becomes HIGH in CV constant voltage mode and LOW in CC constant current mode.
Master-slave parallel operation
The PAV series allows up to 6 parallel connections to increase the output current.
Output voltage and output current control using external voltage
It is possible to control the output voltage/output current of the PAV series by using an external voltage.
Output on/off control
It is possible to turn the output ON/OFF of the PAV series by using an external contact.
Daisy chain connection
A multiple power supply system configured with more than one PAV series allows to create a multi-power supply system that stops all the power supply outputs if any power supply fails
Output voltage and output current control using external resistance
It is possible to control the output voltage/output current of the PAV series by using an external variable resistor.
Series operation
You can connect PAV series with the same rating in series to increase the output voltage. (up to 2 units)
Dual output configuration is also supported.
Models whose rated output voltage is 10 V, 20 V or 36 V : ±60 Vdc or less
Models whose rated output voltage is 10 V or 100 V : ±100 Vdc or less
Models whose rated output voltage is 160 V, 320 V, or 650 V : ±650 Vdc or less
PS_OK signal
A failure is notified by a TTL level signal if the protection function is activated. The PS_OK level is HIGH in normal operating state.
USB/RS232C/RS485 Control
The PAV series employs USB/RS232C/RS485 interfaces as a standard.Up to 31 PAV series power supplies can be connected and controlled.The USB/RS232C/RS485 interfaces are integrated in the PAV series main body.
Parallel operation/Synchronized operation
Parallel operation (PAV series with the same rating) and synchronized operation (trigger synchronization) are available.Use of optional rack-mount adapter KRA2-PAV (allows up to 6 units) and half-size integrated chassis cover CC01- PAV (allows up to 3 units) allows integration for smart rack mounting and transportation. *Parallel operation and synchronized operation can be achieved without the optional KRA2-PAV and CC01-PAV.
