MEATEST M530 RF Resistance Standards

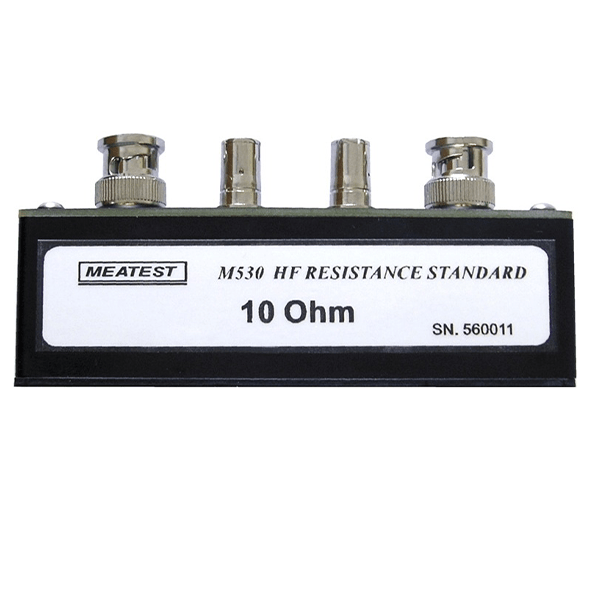

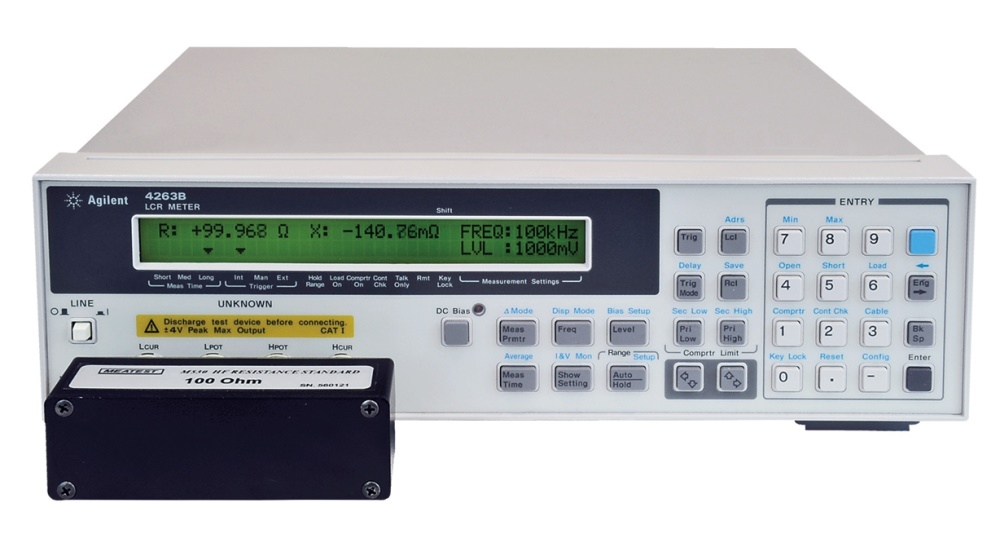

M530 series is designed specifically for calibration of LCR meters in frequency range from DC to 100 MHz, thanks to its HF design and using strip line technology. Four-pair BNC terminal connection with 22 mm distance can be connected directly to UUT without additional test leads.

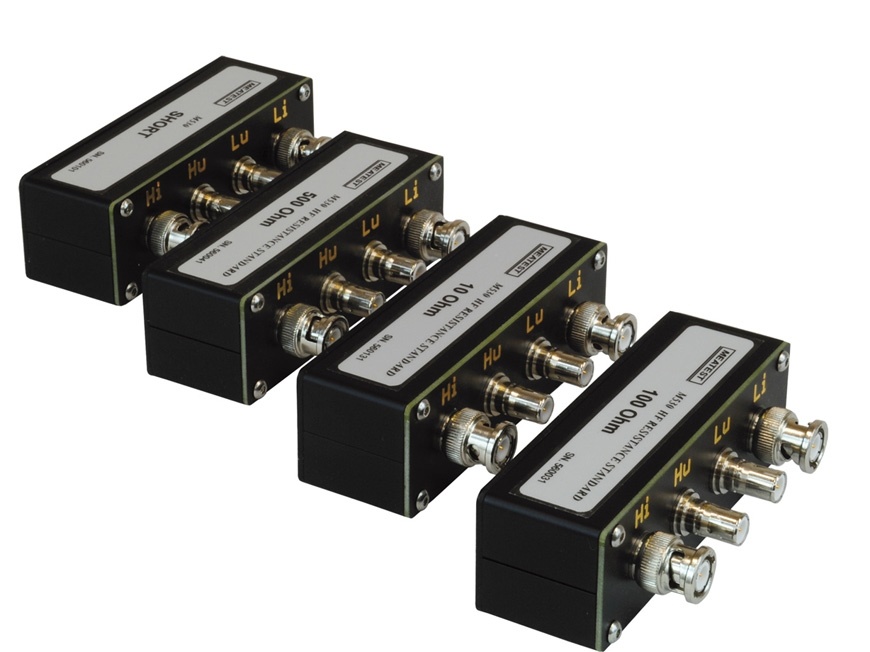

The standards are available with nominal values 10 Ω, 50 Ω, 100 Ω, 500 Ω, 1000 Ω in 1% tolerance. Reference positions OPEN and SHORT for easy “zero” compensation are available as well.
Features
- Frequency rating 100 MHz
- Very low frequency dependency
