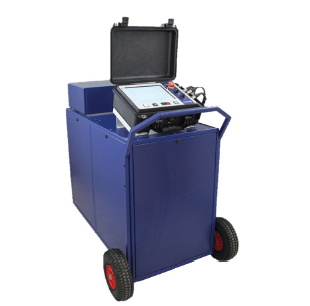

The P32i provides an easy to use all-in-one solution for troubleshooting, pre-locating and pinpointing of cable faults in complex MV & HV cable networks. Menu guided computerized operation allows to detect and precisely locate any possible fault for even inexperienced users. Featuring a large colored 10,4” screen the P32i can display measurement curves, settings and message codes simultaneously.
Integrated full scale TDR capability including the high voltage ARTi mode will isolate and pre-locate low and high resistance faults with outmost precision. Consequently, precise pinpointing will take much less time. Fast HV surge pulse cycles of 3 sec. with up to 2500 Joule energy provide for even the most demanding locating jobs. The multi-dimensional safety system PROSAFE 3D ensures maximum safety for the instrument, the operator and DUT. The optional pinpointer Kamphone and Locator S are used for flash-over faults or cable sheath faults respectively.
Features
- Integrated & Automatic System
- High 2500 Joule Multi-Range Output
- Portable With Low Weight
