KIKUSUI TOS9303LC multi analyzer capable of AC/DC hipot tester, insulation resistance, ground bond, and leakage current testing

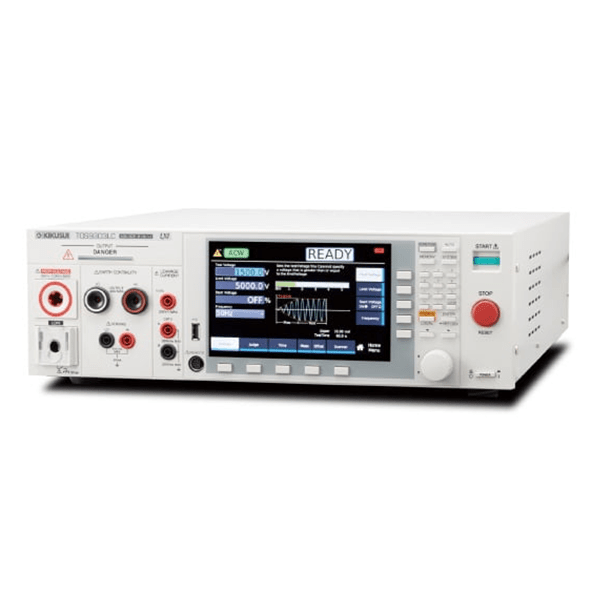

KIKUSUI TOS9303LC

The TOS9300 series is a high performance electrical safety analyzer that complies to a wide range of universal standards. Hipot, Insulation Resistance, Ground Bond, Leakage Current (touch current and protective conductor current) and partial discharge can all be tested. A total of 6 models are available for standard compliance tests in a wide variety of applications including R&D, quality assurance manufacturing lines and laboratory tests.

Özellikler:

• Max. output-voltage of AC hipot testing: 5kV/100mA(500VA)
• Max. output-voltage of DC hipot testing : 5kV/20mA, 7.2kV/13.9mA(100W)
• Measurement range of insulation resistance testing : 0.001MΩ to 100.0GΩ(DC-25V to -1000V / DC+50V to +7200V)
• Measurement range of ground bond testing : 0.001Ω to 0.600Ω(3.0A to 42.0A)
• Measurement range of leakage current testing: 1µA to 100mA(rms)
• Electrical breakdown inspection setting available
• LAN/USB/RS232C standard digital interface
• Easy-to-read LCD for real-time monitoring during tests. All measurement values and standard outlines displayed in each test
