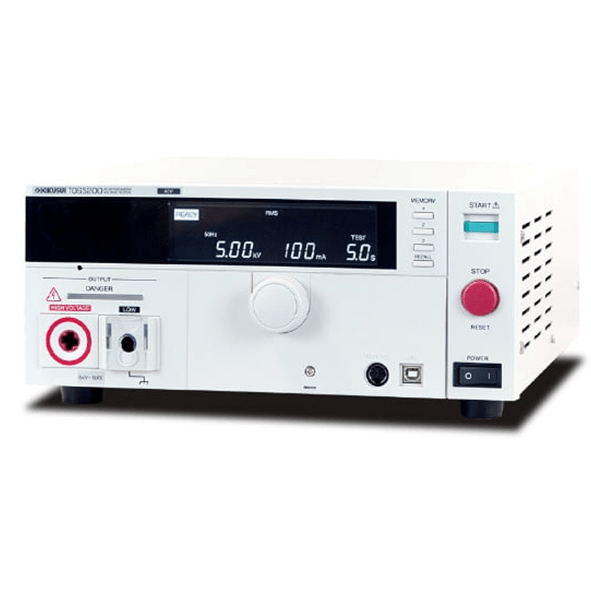

KIKISUI TOS5200
- Hipot (Withstanding voltage): AC 5 kV/100 mA
- High-precision measurement ± 1.5 % of reading
- Rise/Fall time control function
- Key lock function and Protection cover on the panel operation
- Limit voltage function
- Monitoring output voltage function
- Equipped with USB and RS232C interface as standard
TOS5200 is designated model for AC Hipot Test with 500 VA capacity and 200 mA short circuit current output capability. With equipped PWM amplifier, this model can provide a stable & reliable output without being affected by AC power line. Therefore, it is a perfect AC Hipot Test solution for electronic equipment or devices based upon IEC, EN, UL, VDE and JIS etc. requirement. As TOS5200 maintains most of all features of our upper class model for AC Hipot Test, it achieves the superb cost / performance ratio for those who needs 200 VA or 500 VA capacity, or both. Also, as it equips Interlock function together with other safety features, operator can carry out the Test with higher current value in safe.
