FG400, 0,01 µHz ila 30 MHz sinüs dalga frekans aralığı ile temel, uygulamaya özel ve arbitrary dalga formlarını kolayca oluşturur. Çıkış dalga biçimleri Sinüs, Kare, Darbe, Rampa, Parametre değişkeni, Gürültü (Gauss dağılımı), DC ve Arbitrary oluşur. Bu ünite, kullanıcının motor sürücüleri, invertörler, güç kaynakları ve diğer güç elektroniği cihazları gibi yüzer devrelerin geliştirilmesinde kullanmasına izin veren izole çıkışlar içerir. Ek olarak, 12 faza kadar çıktı üretmek için birden fazla ünite birlikte senkronize edilebilir.JAPON MALI

The handheld AQ 1300 ethernet field tester for network path testing and maintenance is designed to improve work efficiency and quality. The AQ1300 offers excellent functionality and operability optimized for field testing. It's easy to operate, which prevents operational errors and stabilizes work quality for routine tasks such as network path testing. Powerful analysis functions help isolate failures during maintenance work. JAPON MALI

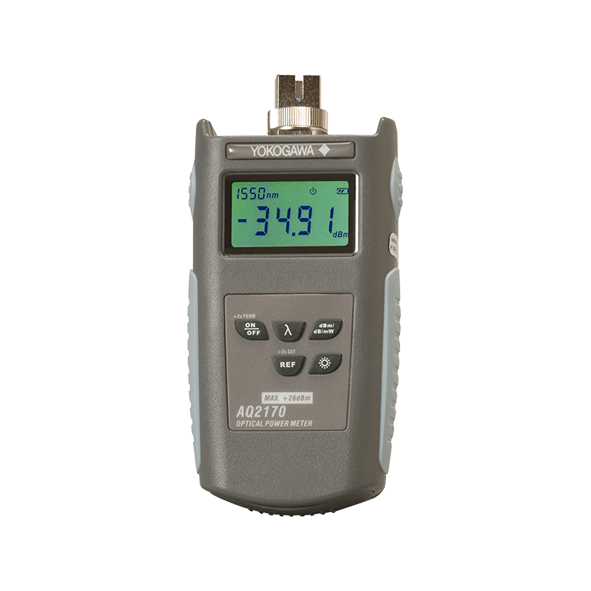

The compact and lightweight AQ2170 Series portable optical fiber power meter is battery-operated with auto wavelength matching and versatile data storage/transfer. It's a mini, simple meter for optical loss measurements on optical fiber cables JAPON MALI

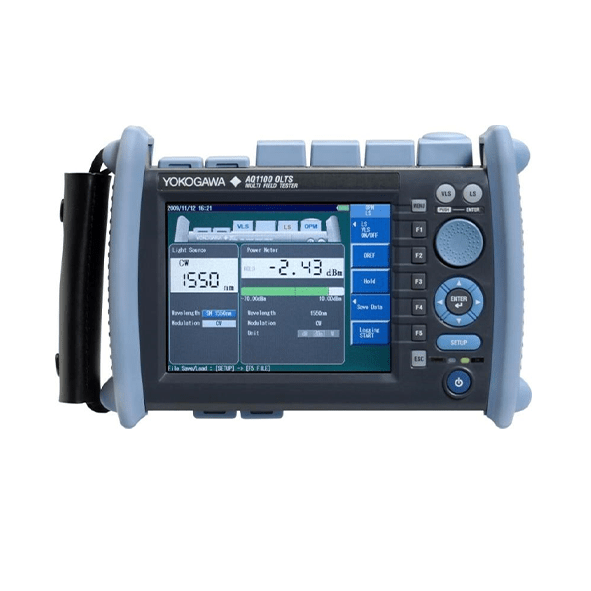

Light Sources and Optical Power meter in one unit.  Designed for field operations with a 5.7" screen, yet weighing under 3.3lbs / 1.5kg, the AQ1100 provides a USB port for data storage and optional PING test function and Visible Fault Light.  It can be configured for standard power measurements, high power measurements or FTTH with 1490/1550nm parallel measurements. JAPON MALI

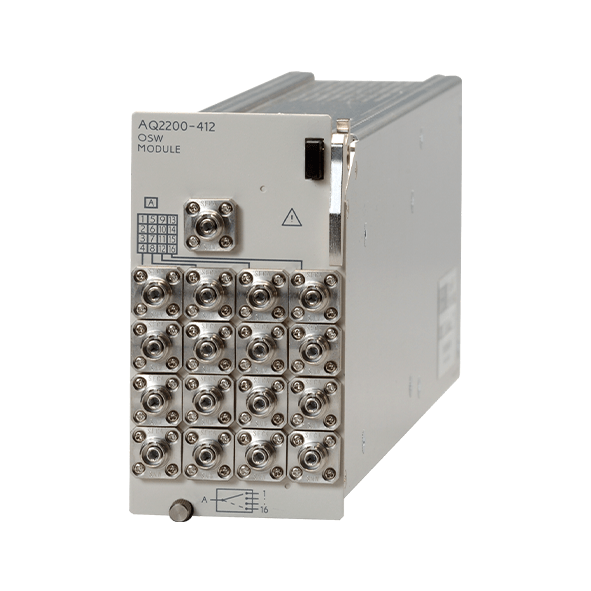

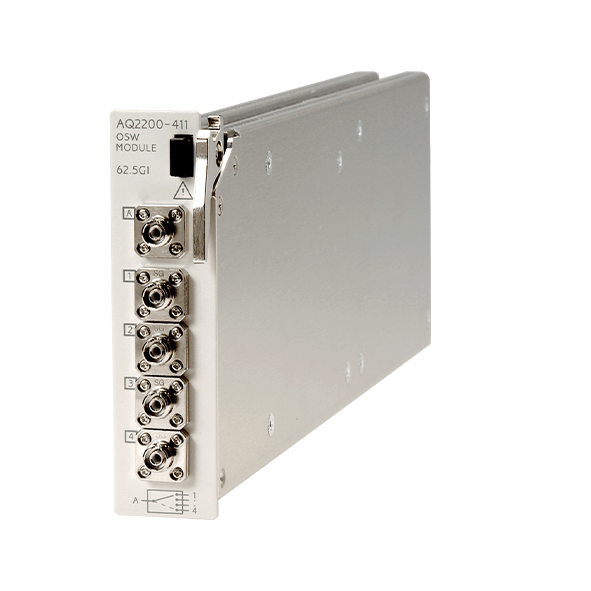

• Compact: Optical switches of 1 x 4 or 1 x 8 port configuration in a one-slot size module
• Compatible with SMF(10/125µm) or MMF(50/125µm, 62.5/125µm)
• Low insertion loss: 1.0 dB (typ.)
• High switching reproducibility: within ±0.01 dB
• Can be combined with various AQ2200 series modules or other Yokogawa's optical communication measuring instruments to build versatile measuring systems JAPON MALI



• Large-diameter detector for free-space measurement 5 mm dia. (AQ2200-232), □5.8 mm (AQ2200-242)
• Multi-core connector and cable measurement The AQ9340, AQ9436C and AQ9440Care required.
• Power range: -90 to +15 dBm (AQ2200-232) -90 to +10 dBm (AQ2200-242)
• Uncertainty: ±1.8% (1310 nm, AQ2200-232) ±2.5% (850 nm, AQ2200-242)
• Averaging time: 100 µm (minimum sampling intervals)
• Two sensor heads can be connected to the AQ2200-202 Interface module JAPON MALI



The AQ2200-215 is an optical power meter designed specifically to measure high optical power up to +30dBm. It features high speed sampling and advanced data processing functions. The AQ2200-215 is an ideal measurement tool for optical output power measurement and margin test of WDM transmission equipment, as well as gain measurements of optical fiber amplifiers. It is commonly used in conjunction with other AQ2200 Series modules and the AQ6370C Optical Spectrum Analyzer to offer a flexible customized optical measurement system. JAPON MALI

The AQ2200-131 and AQ2200-132 are single and dual channel tunable light source modules. The output wavelength can be conveniently set to the predefined DWDM grid channels. JAPON MALI

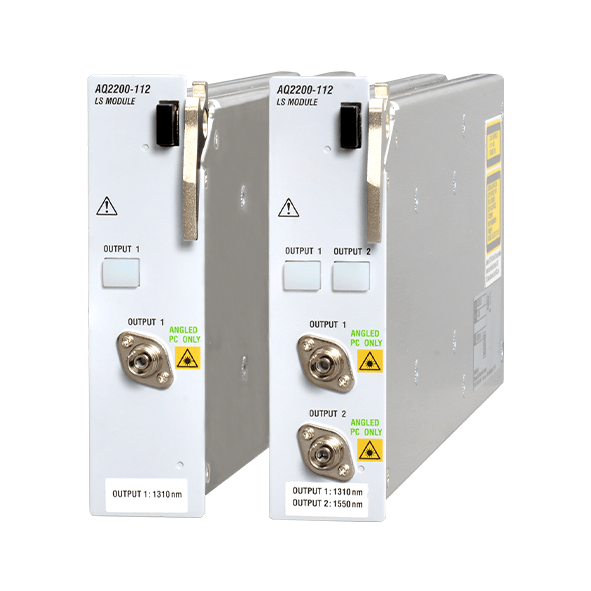

The AQ2200-112 is a light source module with high output level stability performance, it is suitable for testing the performance of passive optical components as well as calibration of optical power meters. JAPON MALI

The AQ6151B Optical Wavelength Meter is an ideal instrument for accurately measuring the optical wavelength of optical devices and systems with wavelength ranges from 900 nm to 1700 nm. By employing a Michelson interferometer and a high speed Fast Fourier Transform (FFT) algorithm, the AQ6151B can measure not only a single wavelength laser signal, but also a multiple wavelength laser signal from a DWDM system and Fabry-Perot laser. Furthermore, this technology enables the measurement of modulated laser signals in addition to the CW signal from an optical transceiver. The optimized optical design and data processing routine significantly reduces the measurement time and improves manufacturing throughput.

• High wavelength accuracy: ±0.2 ppm
• Wavelength range (3 types): 900-1700nm, 1200-1700nm, 1270-1650nm
• Measurement time of 0.2 seconds or less
• Up to 1024 wavelengths can be measured at once
• Single wavelength type and multi wavelength type
• Support modulated light and filter measurement

JAPON MALI

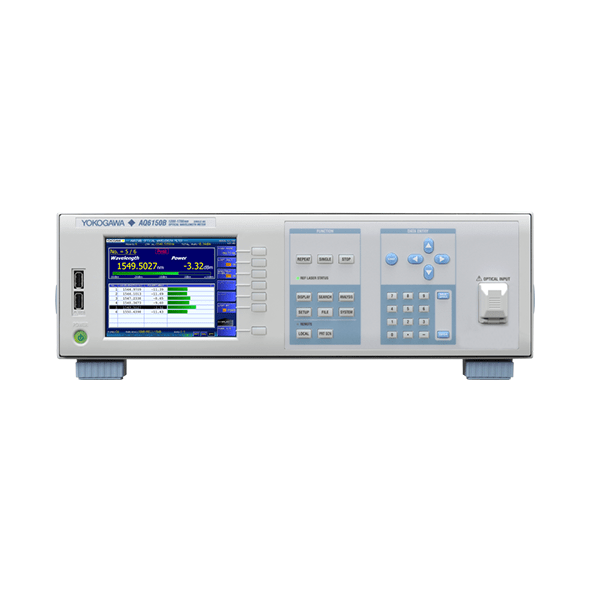

The AQ6150B Optical Wavelength Meter is an ideal instrument for accurately measuring the optical wavelength of optical devices and systems with wavelength ranges from 900 nm to 1700 nm. By employing a Michelson interferometer and a high speed Fast Fourier Transform (FFT) algorithm, the AQ6150B can measure not only a single wavelength laser signal, but also a multiple wavelength laser signal from a DWDM system and Fabry-Perot laser. Furthermore, this technology enables the measurement of modulated laser signals in addition to the CW signal from an optical transceiver. The optimized optical design and data processing routine significantly reduces the measurement time and improves manufacturing throughput.

• Wavelength accuracy: ±0.7 ppm
• Wavelength range (3 types): 900-1700nm, 1200-1700nm, 1270-1650nm
• Measurement time of 0.2 seconds or less
• Up to 1024 wavelengths can be measured at once
• Single wavelength type and multi wavelength type
• Support modulated light and filter measurement

JAPON MALI
